Spetsifikatsioon
# | Üksus | Parameeter | Märkus | ||
1 | Nominaalne maht | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3,2 V | |||
3 | AC Impedance Resistance(1KHz) | ≤0,5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | Laadimistemperatuur | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | Temperatuuri tühjendamine | -20°C~55°C | |||
9 | Ladustamistemperatuur | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35 ° C | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
Mõõtmed | Laius | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36,7 ± 0,5 mm | |||
14 | High( Total) | 200,5 ± 0,5 mm | |||
15 | High( Subject) | 195,5 ± 0,5 mm | |||
16 | Tabs Distance | 67,0 ± 1,0 mm | |||
17 | Aku kaal | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
Rakendus
Meie tehas

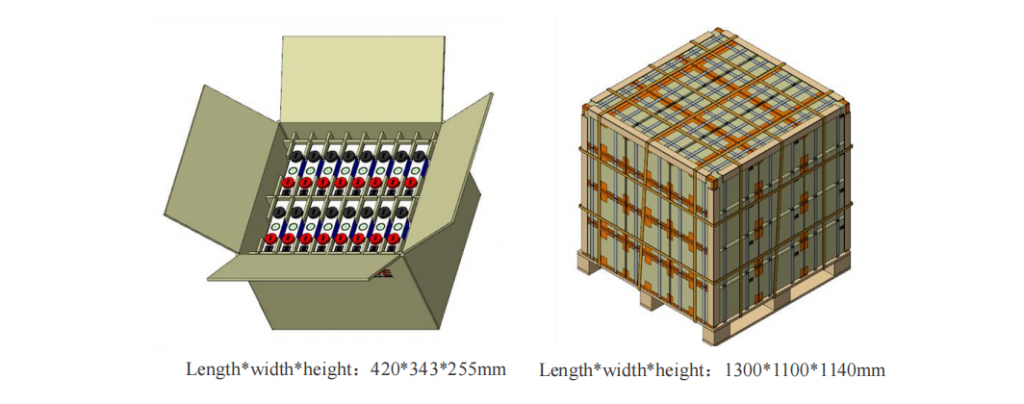

Pakendamine ja saatmine
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
Ladustamine
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
KKK
Q1. Kas mul on näidistellimust?
Jah. Kvaliteedi testimiseks ja kontrollimiseks tervitame proovide tellimist.
Q2. Mis saab teostusajast?
A. Proov vajab 3 päeva, masstootmise aeg 5-7 nädalat, see sõltub tellimuse kogusest.
Q3. Kas teil on MOQ-limiiti?
Jah, meil on masstootmiseks MOQ, see sõltub osade erinevatest numbritest. Saadaval on 1 ~ 10tk näidistellimus. Madal MOQ, 1tk proovide kontrollimiseks on saadaval.
Q4. Kuidas te kaupa tarnite ja kui kaua selle kohalejõudmine võtab?
A. Kohalejõudmine võtab tavaliselt 5–7 päeva. Lennu- ja merevedu on samuti vabatahtlik.
Q5. Kuidas tellimusega edasi minna?
A. Kõigepealt andke meile teada oma nõuetest või rakendusest. Teiseks pakume pakkumist vastavalt teie nõudmistele või meie soovitustele. Kolmandaks kinnitab klient proovid ja teeb ametliku tellimuse jaoks tagatisraha. Neljandaks korraldame lavastuse.
Q6. Kas minu logo printimine tootele on sobilik?
Jah. Palun teavitage meid enne tootmist ametlikult ja kinnitage esiteks meie valimi põhjal kujundus.
Q7.Millised sertifikaadid teil on?
V: Meil on CE / FCC / ROHS / UN38.3 / MSDS ... jne.
Q8.Kuidas garantii?
V: 3 -aastane garantii
