Spetsifikatsioon
Supplier | KÕIK Ühes Aku Technology Co Ltd |

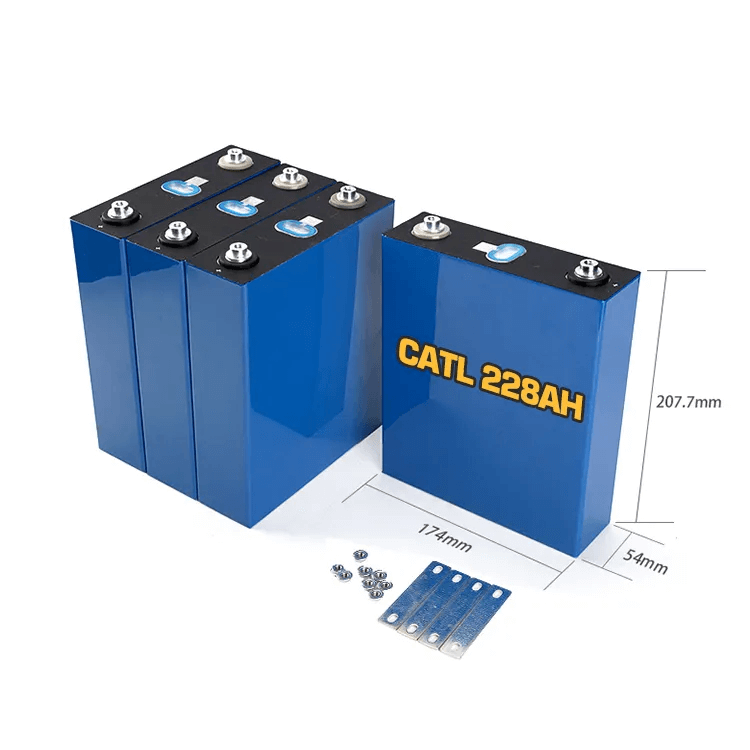

Mudel | CATL LF228 230Ah LiFePO4 3.2V Battery cell |
Reaalne võimsus | Tested over 230Ah |
Nimipinge | 3.2v |
Maksimaalne voolutugevus | 1C/ 230A |
Maksimaalne pinge | 3,65 V |
Vahelduvvoolu takistuse takistus | ≤0,5mΩ |
Laadimistemperatuur | 0-60℃ |
Temperatuuri tühjendamine | -30-60 ℃ |
Tsüklielu | 6000 times SOC 80% |
Kaal | 4,2 kg |
Mõõtmed (L * W * H) | 174*54*208mm |
Rakendused | Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power |
1. Suur mahtuvus ja stabiilne tühjenduspinge
2. Pikem tööaeg suure jõudlusega
3. väike kaal
4. Silmapaistvad tühjendusomadused ja väike sisemine vastupidavus
5. Puudub mäluefekt, hea tühjendusvõime ja suur koormus ning vastupidavad kõrgele temperatuurile
6. Keskkonnakaitseks on saastevaba
7. 100% ehtne originaalne laetav liitiumioonaku
8. Plahvatusvastases ja vooluringide kaitses olev bulid
Märge
1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts)If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6

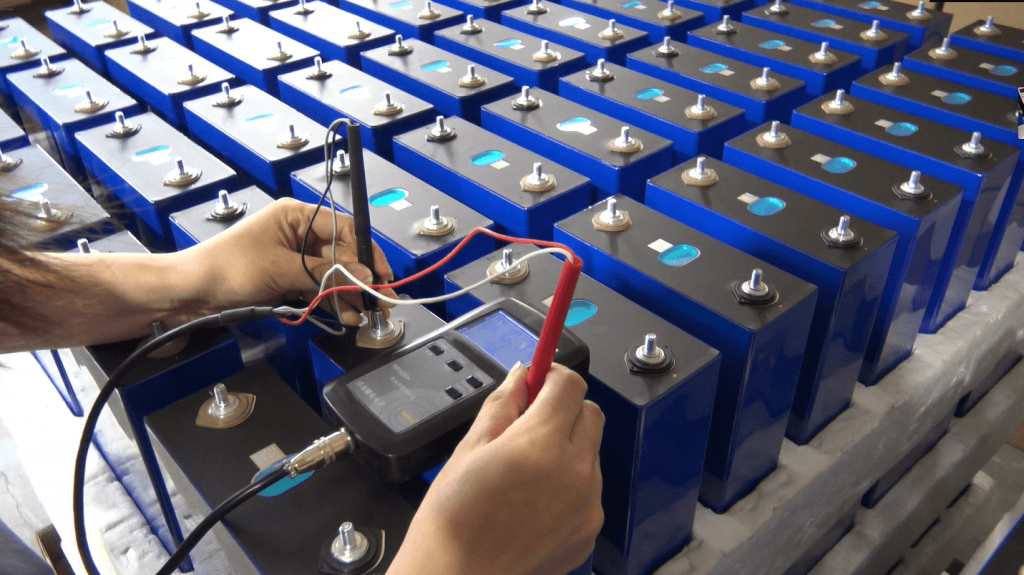

6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.
Important & Warmly Reminder
Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.
Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time,otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.
Need olukorrad ei taga ei tagastamist ega tagastamist
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.
Kuller ja logistika
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.
Rakendus
Meie tehas
1. Oleme 10-aastase kogemusega tarnija. Kõik meie kaubad on kvaliteetse ja hea müügijärgse teenindusega.
3. Stabiilne kvaliteet - pärinege paremalt materjalitarnijalt ja täiuslikult kvaliteedikontrollisüsteemilt.
4. Konkurentsivõimeline hind kui teiste tarnijate puhul.
5. 7/24 teenus teile, kõik küsimused müüakse teile 24 tunni jooksul.
Pakendamine ja saatmine
V: Jah, me tervitame proovide tellimist, et testida ja kontrollida kvaliteeti. Segaproovid on vastuvõetavad.Q2. Mis saab teostusajast?
V: Proov vajab 3-5 päeva, masstootmise aeg vajab 1-2 nädalat, kui tellimiskogus ületab
Q3. Kas teil on liitiumaku jaoks MOQ piirmäära?
V: proovide kontrollimiseks on saadaval madal MOQ, 1 tk
Q4. Kuidas te kaupa tarnite ja kui kaua selle kohalejõudmine võtab?
V: Tavaliselt saadame need DHL, UPS, FedEx või TNT kaudu. Tavaliselt kulub kohalejõudmiseks 3–5 päeva. Lennu- ja meretransport ka valikuline.
Q5. Kuidas jätkata liitiumioonaku tellimist?
V: Kõigepealt andke meile teada oma nõuetest või rakendusest.
Teiseks pakume pakkumist vastavalt teie nõudmistele või meie ettepanekutele.
Kolmandaks kinnitab klient näidised ja teeb ametliku tellimuse eest sissemakse.
Neljandaks korraldame lavastuse.
Q6. Kas saame allkirjastada saladuse hoidmise lepingu, kui tahame luua pikaajalisi ärisuhteid?
V: Muidugi, austame klientide nõudeid, on teile rohkem kasu.
K7: Kas pakute toodetele garantiisid?
V: Jah, me pakume oma toodetele 12-kuulist garantiid.
8. küsimus: kas nõustute OEM / ODM-iga?
V: Muidugi, kohandatud tellimus on saadaval, ja meil on hea meel teid teenida.
A: usually it takes 5 hours with 20A standard charger.
