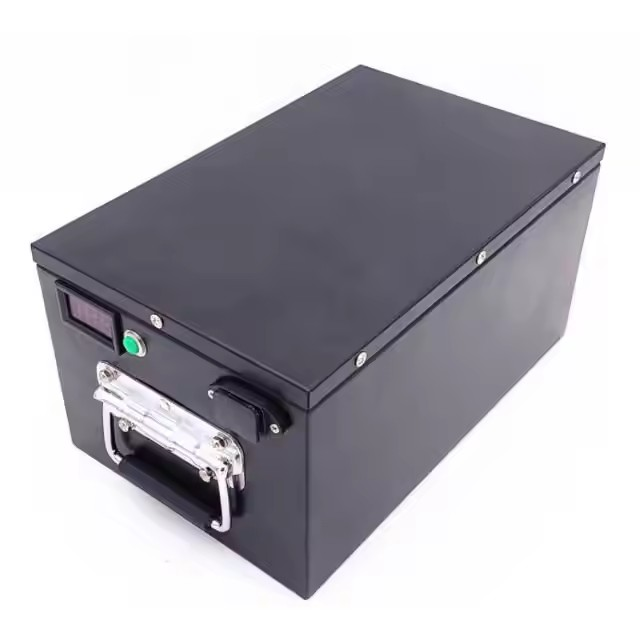

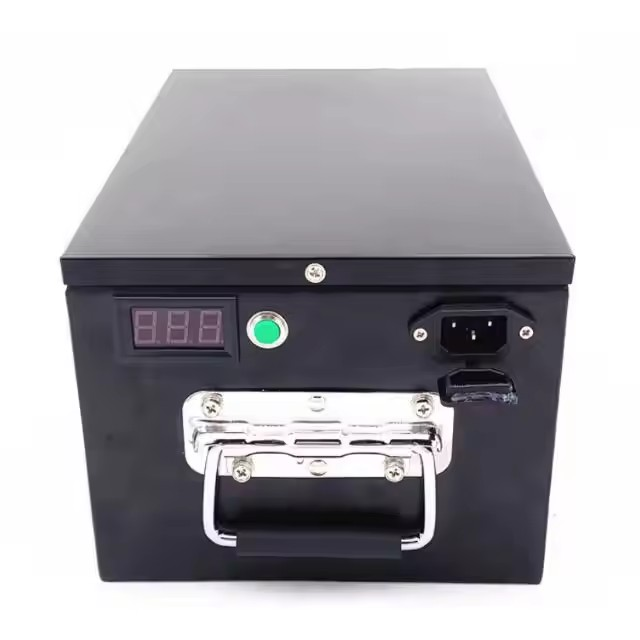

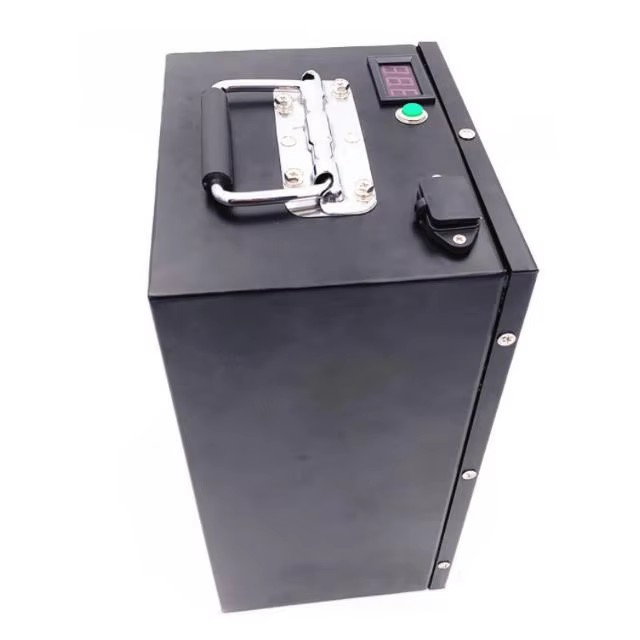

60 V 100 Ah LiFePO4 liitiumioonaku AGV nutika roboti jaoks

2025-01-13 05:29

Spetsifikatsioon

Üksus	Spetsifikatsioon	Märge
Nimipinge:	60V	Any voltage can be customized
Nominal Capacity:	100Ah	Any capacity can be customized
Discharge Cut-Off:	47,5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Takistus:	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Mõõt:	Flexible	Any dimension can be customized
Kaal:	120KG

Funktsioonid

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

Sisseehitatud BMS

Üksus	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Laadige Üle praeguse kaitse	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
Eelarve täitmine Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Lühike protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	Mõõtmed	Kaal	with BMS	RS485/Bluetooth	Cycles	Garantii
60V 10AH	195*165*175mm	9.5kg	Jah	Saadaval	6000times	5years
60V 20AH	330*175*220mm	19 kg	Jah	Saadaval	6000times	5years
60V 30AH	407*175*235mm	25 kg	Jah	Saadaval	6000times	5years
60V 40AH	407*175*235mm	28kg	Jah	Saadaval	6000times	5years
60V 50AH	525*240*215mm	44kg	Jah	Saadaval	6000times	5years
60V 120AH	420*360*550mm	84kg	Jah	Saadaval	6000times	5years
60V 200AH	1000*600*182mm	156kg	Jah	Saadaval	6000times	5years

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Rakendus

Meie tehas

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



KKK

1.Q: Kas toetate näidistellimust?

V: Jah, tere tulemast proovi tellima, meil on laod Ameerika Ühendriikides ja Euroopas, mõnda proovi saab kiiresti saata.

2.Q: Kas tootel on sisseehitatud hoone juhtimissüsteem (BMS)?

V: Jah, intelligentne BMS, sh sisseehitatud JBD/PACE/SmarTec, tagab akude nutika haldamise.

3.Q: Can your company accept customized order ?

V: Muidugi on meie tugevuseks kohandamine.

4.Q: Kas akupakett saab ühilduda turul olevate inverteritega?

V: Jah, härra, meie pakendid ühilduvad enam kui 20 turul oleva inverteri kaubamärgiga, sealhulgas Victron, Goodwe, Solis, Growatts, Voltronics, Deye ja teised tuntud kaubamärgid.

5.Q: Kuidas on garantiiga lood?

A: 5 years upto its usage.

6.Q: Kas teil on mingeid sertifikaate?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.Q: Kuidas on tarneviis ja -aeg?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Kas teil on päris tehas?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
