48v 100ah 200ah hulgimüük kodu hübriidvõimsusega seinale paigaldatav laetav päikeseenergia liitium lifepo4 aku

2023-08-18 06:01

Spetsifikatsioon

Mudeli nr	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Pinge	48/51.2V	48/51.2V	48/51.2V
Maht	100Ah	150Ah	200Ah
Energia	5.12kwh	7.68kwh	10.24kwh

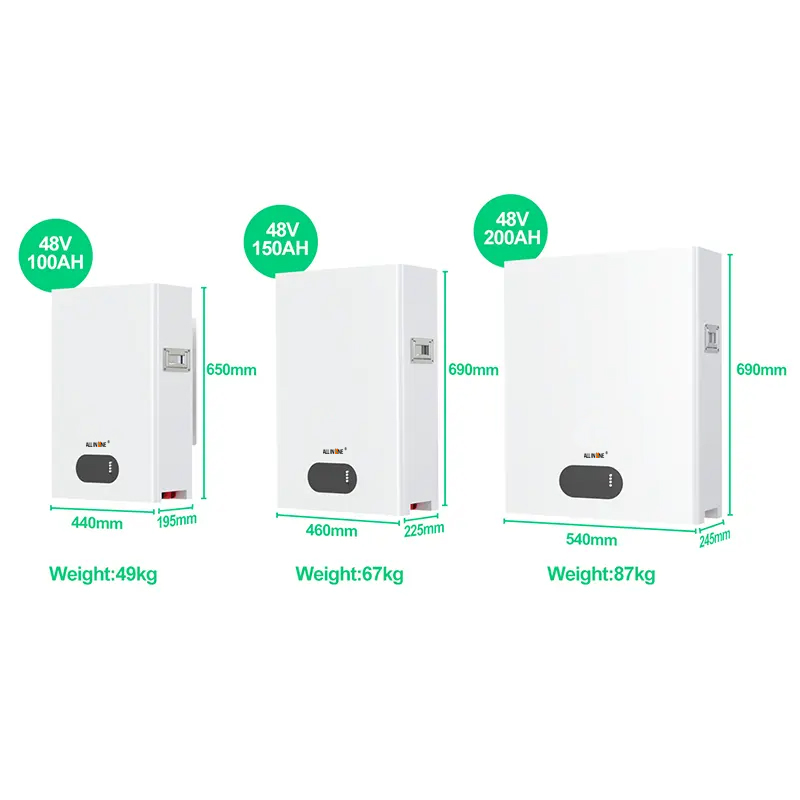

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Kaal	49 kg	67kg	87kg
Põhiparameetrid
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Töötemperatuur	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Ladustamistemperatuur	0°C kuni 45°C suhtelise õhuniiskuse juures 60+/-25%.	0°C kuni 45°C suhtelise õhuniiskuse juures 60+/-25%.	0°C kuni 45°C suhtelise õhuniiskuse juures 60+/-25%.
Standardne liitiumaku	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Maksimaalne võimsus	5120W	7680W	10240W

Meie tehas

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

KKK

K: kas olete kaubandusettevõte või tootja?
A: We are ALL IN ONE original factory.

K: Kas mul on proove, mida testida? Ja mis on proovide tellimise tarneaeg?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

K: kas pakute müügijärgset teenust?
V: Jah, garantii on 12 kuud, kui sellel perioodil on meie kvaliteediprobleeme, võime uue asendada.

K: Kas nõustute OEM / ODM-iga?
V: Jah, see on saadaval.

K: kas teil on aku reaalset mahutavust?
V: Kõik meie A-klassi akuelemendid, 100% uus ja reaalne mahutavus.

K: Milliseid sertifikaate teil on?
V: Kui teie tellimuse kogus on suur, pakume CE, ROHS, FCC, IEC62133, MSDS, UN38.3.

K: kas teil on MOQ?
A: pole piiratud. Väike tellimus ka teretulnud. Rohkem kogusel on parem hind, kontrollime teile parimat hinda.

K: Mis on teie maksetähtaeg?
A: Me võtame kasutusele T / T, Paypal, Alibaba makseviisi ja nii edasi.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
